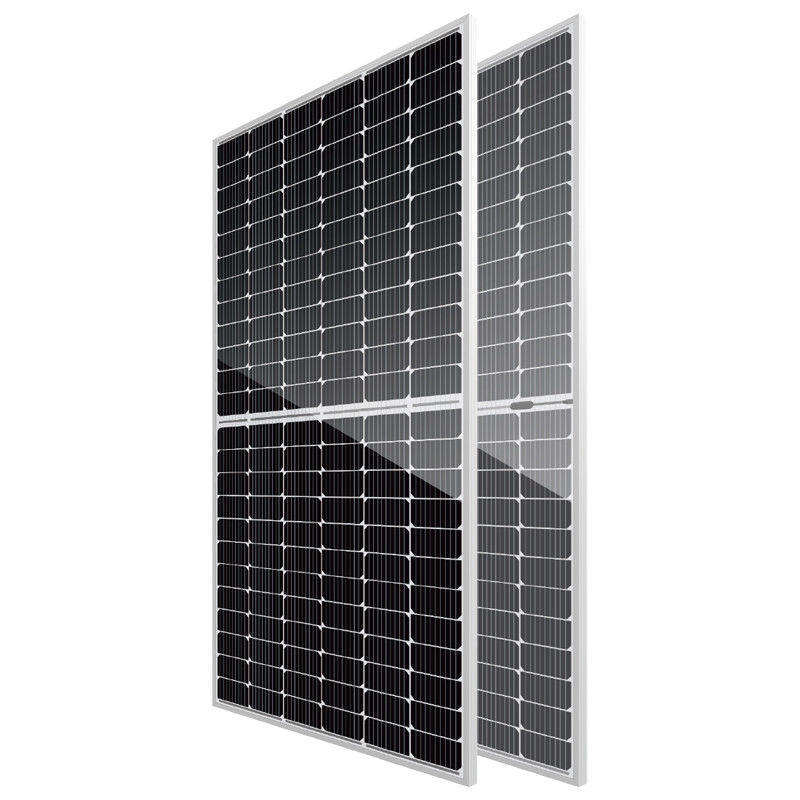

10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel
  • 10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel
  • 10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel

10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel

Place of Origin Jiangsu, China
Brand Name AKS
Certification CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Model Number AH7G
Product Details
Product Name:
MWT Full Black Solar Panles
Model Number:
AH7G
Cell Size:
144(24x6) / 10BB Mono / Half-cell
Panel Efficiency:
21.7%
Installation Module Dimension:
2277mm*1133mm*35mm
Brand Name:
Sunport
Type:
PERC, Half Cell
High Light:

10BB Classic Bifacial Solar Pv Modules

,

Bifacial Solar Pv Modules 535W

,

560W Bifacial Monocrystalline Solar Panel

Payment & Shipping Terms
Minimum Order Quantity
30pcs
Price
$0.18~$
Packaging Details
pallet
Delivery Time
To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000 Watt/Watts per Week
Product Description

Sunport Power SSD AH7G / 10BB 535W-560W Monocrystalline High-Efficiency Bifacial Solar Module Classic Solar Panel

The introduction of Sunport Solar Panels has dramatically changed the solar energy industry with their advanced and highly efficient solar panels. These innovative panels capture the power of sunlight and transform it into clean, renewable electricity that can be used for various applications. Sunport's focus on delivering eco-friendly and cost-effective solutions has established them as a leader in the solar energy field. Their pioneering solar panel technology combines high efficiency with an attractive design, making it a popular choice for both residential and commercial installations.



★ ISO 9001:2015 Quality Management System

★ ISO 14001:2015 Environment Management System

★ ISO 45001: 2018 Occupation Health Safety Management System

★ TUV NORD Certification



Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model
Unit
SSD535
AH7G
SSD540
AH7G
SSD545
AH7G
SSD550
AH7G
SSD555
AH7G
SSD560
AH7G
Max-Power(Pm)
W
535
540
545
550
555
560
Power Tolerance
W
0~±5
Max-Power Voltage(Vm)
V
41.5
41.66
41.80
41.95
42.10
42.25
Max-Power Current(lm)
A
12.90
12.97
13.04
13.12
13.20
13.27
Open-Circuit Voltage(Voc)
V
49.50
49.63
49.75
49.90
50.05
50.20
Short-Circuit Current(lsc)
A
13.63
13.67
13.74
13.77
13.82
13.86
Module Efficiency(qm)
%
20.7
20.9
21.1
21.3
21.5
21.7
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 010BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 1
TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.
— Structural Feature —
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 2
MWT
Positive and negative electrodes are both on the rear side of solar cell
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 3
Conventional
Positive and negative electrodes are located on opposite sides of the cell
— Cell Structure —
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 4
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 5
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 6
Replace conventional soldering with conductive foil and 2D encapsulation structure
10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 7
Conventional Cells connected by string ribbons



10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 8



10BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 910BB Classic Bifacial Solar Pv Modules 535W-560W Bifacial Monocrystalline Solar Panel 10



FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc


Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
