MWT Sunport Solar Panels 360W - 380W Monocrystalline Silicon Solar Panel Sunpower

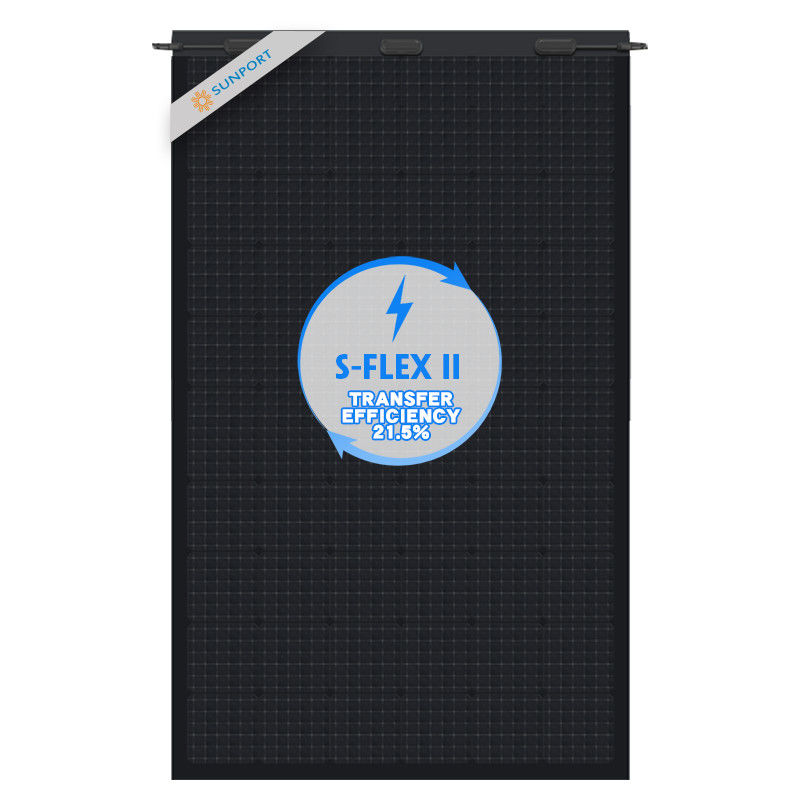

SUNPORT QHES(B) S-Flex 6II 360-380W MWT Monocrystalline Silicon Golden Supplier Flexible Solar Panels Sunpower

Monocrystalline solar panels are highly regarded in the renewable energy industry for their exceptional efficiency and reliable performance. Crafted from a single crystal structure, these solar panels possess a higher level of purity and efficiency compared to other panel types. This increased efficiency allows monocrystalline solar panels to generate more power per square foot, making them an attractive choice for those with limited space or seeking maximum energy production. Many consumers also appreciate the sleek black design of these panels for its aesthetic appeal. Known for their durability and extended lifespan, monocrystalline solar panels are a valuable investment for anyone interested in utilizing solar energy.

Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model	Unit	SPP360QHES	SPP365QHES	SPP370QHES	SPP375QHES	SPP380QHES
Max-Power(Pm)	W	360	365	370	375	380
Power Tolerance	W	0~5%
Max-Power Voltage(Vm)	V	34.7	34.9	35.1	35.3	35.5
Max-Power Current(lm)	A	10.37	10.46	10.54	10.62	10.70
Open-Circuit Voltage(Voc)	V	42.4	42.6	42.8	43.0	43.2
Short-Circuit Current(lsc)	A	10.94	11.02	11.10	11.18	11.26
Module Efficiency(qm)	%	20.4	20.7	21.0	21.2	21.5



TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.



— Structural Feature —

MWT

Positive and negative electrodes are both on the rear side of solar cell

Conventional

Positive and negative electrodes are located on opposite sides of the cell

— Cell Structure —

MWT

Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Conventional

Conventional design covers more cell surface from the main busbars, therefore the power output is limited

— Module Encapsulation —

Replace conventional soldering with conductive foil and 2D encapsulation structure

Conventional Cells connected by string ribbons
