Monocrystalline Solar Panel
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

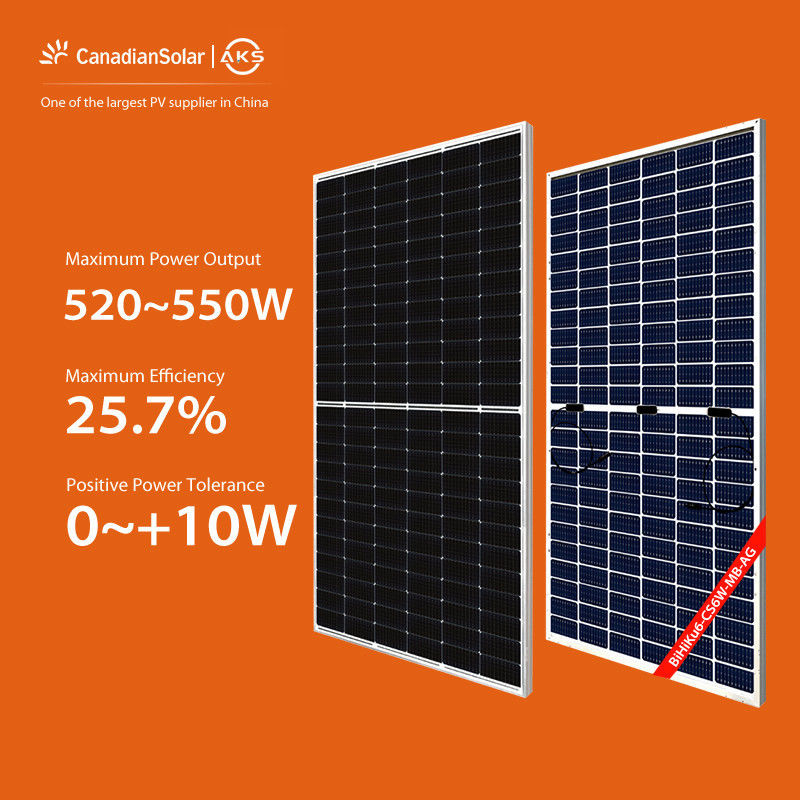

| Model Number | BiHiKu6-CS6W-MB-AG |
Durability is a crucial factor when it comes to monocrystalline solar panels, as they must withstand harsh weather conditions and environmental factors throughout their lifespan. Our monocrystalline solar panels are constructed with robust materials and features that ensure their resilience and longevity. This durability translates to consistent performance and energy production, providing you with a dependable source of renewable energy for the long term. Additionally, our monocrystalline solar panels come with extended warranty periods for added peace of mind and protection for your investment.
Lower BOS cost & LCOE cost
· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters
Enhanced reliability
· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance
| Model No. | CS6W-520MB-AG | CS6W-525MB-AG | CS6W-530MB-AG | CS6W-535MB-AG | CS6W-540MB-AG | CS6W-545MB-AG | CS6W-550MB-AG |
| Warranty | |||||||
| Product Warranty | 12 Years | ||||||
| Power Warranty | 30 Years of 84.95% Output Power | ||||||
| Electrical Data at STC | |||||||
| Maximum Power (Pmax) | 520 Wp | 525 Wp | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp |
| Voltage at Maximum Power (Vmpp) | 40.5 V | 40.7 V | 40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V |
| Current at Maximum Power (Impp) | 12.84 A | 12.9 A | 12.96 A | 13.02 A | 13.08 A | 13.14 A | 13.2 A |
| Open Circuit Voltage (Voc) | 48.4 V | 48.6 V | 48.8 V | 49 V | 49.2 V | 49.4 V | 49.6 V |
| Short Circuit Current (Isc) | 13.7 A | 13.75 A | 13.8 A | 13.85 A | 13.9 A | 13.95 A | 14 A |
| Panel Efficiency | 20.20% | 20.40% | 20.60% | 20.80% | 21% | 21.20% | 21.40% |
| Power Tolerance (Positive) | 2% | 2% | 2% | 2% | 2% | 2% | 2% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||||
| Electrical Data at NOCT | |||||||
| Maximum Power (Pmax) | 390 Wp | 394 Wp | 397 Wp | 401 Wp | 405 Wp | 409 Wp | 412 Wp |
| Voltage at Maximum Power (Vmpp) | 38 V | 38.2 V | 38.3 V | 38.5 V | 38.7 V | 38.9 V | 39.1 V |
| Current at Maximum Power (Impp) | 10.27 A | 10.32 A | 10.38 A | 10.42 A | 10.47 A | 10.52 A | 10.55 A |
| Open Circuit Voltage (Voc) | 45.7 V | 45.9 V | 46.1 V | 46.3 V | 46.5 V | 46.7 V | 46.9 V |
| Short Circuit Current (Isc) | 11.05 A | 11.09 A | 11.13 A | 11.17 A | 11.21 A | 11.25 A | 11.29 A |
| Temperature | 41±3 °C | ||||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||||
| Thermal Ratings | |||||||
| Operating Temperature Range | 40~85 °C | ||||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||||
| Temperature Coefficient of Voc | 0.26 %/°C | ||||||
| Temperature Coefficient of Isc | 0.05 %/°C | ||||||
| Maximum Ratings | |||||||
| Maximum System Voltage | 1500 V | ||||||
| Series Fuse Rating | 30 A | ||||||
| Material Data | |||||||
| Panel Dimension (H/W/D) | 2266x1134x30 mm | ||||||
| Weight | 32.1 kg | ||||||
| Cell Type | PERC, Bifacial | ||||||
| Cell Number | 144 | ||||||
| Glass Type | Anti-reflection Coating | ||||||
| Glass Thickness | 2 mm | ||||||
| Frame Type | Anodized Aluminium Alloy | ||||||
| Junction Box Diodes | 3 | ||||||
| Junction Box Protection Class | IP 68 | ||||||
| Connector Type | MC4 | ||||||
| Cable Crossection | 4 mm2 | ||||||
| Cable Length | 410 mm | ||||||
