High Power Dual Cell PERC Module
· 210 mm wafer + 132 / 120 dual cell + PERC technology
· Module power up to 670 W
· 0.4% more energy yield in module lifetime
Lower BOS cost & LCOE cost
· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters
Enhanced reliability
· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance

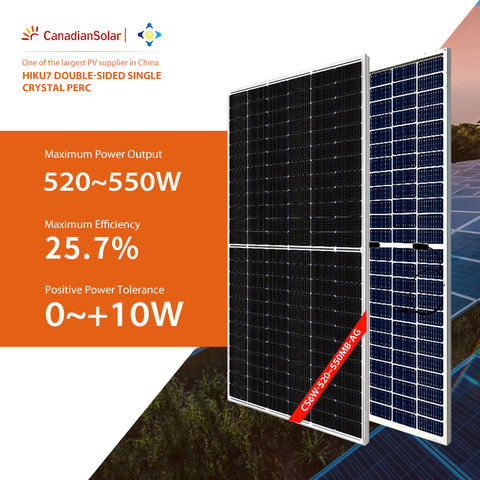

Model No. | CS6W-520MB-AG | CS6W-525MB-AG | CS6W-530MB-AG | CS6W-535MB-AG | CS6W-540MB-AG | CS6W-545MB-AG | CS6W-550MB-AG |
Warranty | |||||||
Product Warranty | 12 Years | ||||||
Power Warranty | 30 Years of 84.95% Output Power | ||||||
Electrical Data at STC | |||||||
Maximum Power (Pmax) | 520 Wp | 525 Wp | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp |
Voltage at Maximum Power (Vmpp) | 40.5 V | 40.7 V | 40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V |
Current at Maximum Power (Impp) | 12.84 A | 12.9 A | 12.96 A | 13.02 A | 13.08 A | 13.14 A | 13.2 A |
Open Circuit Voltage (Voc) | 48.4 V | 48.6 V | 48.8 V | 49 V | 49.2 V | 49.4 V | 49.6 V |
Short Circuit Current (Isc) | 13.7 A | 13.75 A | 13.8 A | 13.85 A | 13.9 A | 13.95 A | 14 A |
Panel Efficiency | 20.20% | 20.40% | 20.60% | 20.80% | 21% | 21.20% | 21.40% |
Power Tolerance (Positive) | 2% | 2% | 2% | 2% | 2% | 2% | 2% |
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||||
Electrical Data at NOCT | |||||||
Maximum Power (Pmax) | 390 Wp | 394 Wp | 397 Wp | 401 Wp | 405 Wp | 409 Wp | 412 Wp |
Voltage at Maximum Power (Vmpp) | 38 V | 38.2 V | 38.3 V | 38.5 V | 38.7 V | 38.9 V | 39.1 V |
Current at Maximum Power (Impp) | 10.27 A | 10.32 A | 10.38 A | 10.42 A | 10.47 A | 10.52 A | 10.55 A |
Open Circuit Voltage (Voc) | 45.7 V | 45.9 V | 46.1 V | 46.3 V | 46.5 V | 46.7 V | 46.9 V |
Short Circuit Current (Isc) | 11.05 A | 11.09 A | 11.13 A | 11.17 A | 11.21 A | 11.25 A | 11.29 A |
Temperature | 41±3 °C | ||||||
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||||
Thermal Ratings | |||||||
Operating Temperature Range | 40~85 °C | ||||||
Temperature Coefficient of Pmax | 0.34 %/°C | ||||||
Temperature Coefficient of Voc | 0.26 %/°C | ||||||
Temperature Coefficient of Isc | 0.05 %/°C | ||||||
Maximum Ratings | |||||||
Maximum System Voltage | 1500 V | ||||||
Series Fuse Rating | 30 A | ||||||
Material Data | |||||||
Panel Dimension (H/W/D) | 2266x1134x30 mm | ||||||
Weight | 32.1 kg | ||||||
Cell Type | PERC, Bifacial | ||||||
Cell Number | 144 | ||||||
Glass Type | Anti-reflection Coating | ||||||
Glass Thickness | 2 mm | ||||||
Frame Type | Anodized Aluminium Alloy | ||||||
Junction Box Diodes | 3 | ||||||
Junction Box Protection Class | IP 68 | ||||||
Connector Type | MC4 | ||||||
Cable Crossection | 4 mm2 | ||||||
Cable Length | 410 mm |
